IRLZ14N Pinout

Symbol

IRLZ14N Symbol

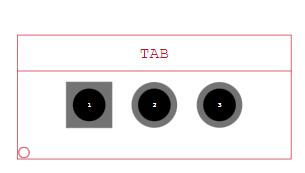

Footprint

IRLZ14N Footprint

3D Model

IRLZ14N 3D Model

The IRLZ24N is an N Channel MOSFET in a TO-220 package. Because it is a logic level MOSFET, it can be operated directly from low voltage devices such as ICs, microcontrollers, and other electronic platforms such as the Arduino and Raspberry Pi.

IRLZ24N can be used in a wide range of circuits, including solar, automotive, and battery systems, as well as portable and low voltage circuits. Furthermore, it can be used in high-power audio amplifiers.

To get good and long-term performance from IRLZ24NPBF MOSFET, follow the safety guidelines listed below.

• Never use the transistor to its absolute maximum ratings and always stay 20% below them.

• Because the maximum drain to source voltage is 55V, do not drive loads greater than 44V.

• Because the maximum continuous drain voltage is 18A, do not drive loads greater than 14.1V.

• It is critical to use a proper heatsink.

• The operating or storage temperature should be between -55 ° C and +175 ° C.

On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics. Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analogue integrated circuits, as well as discrete semiconductor products.

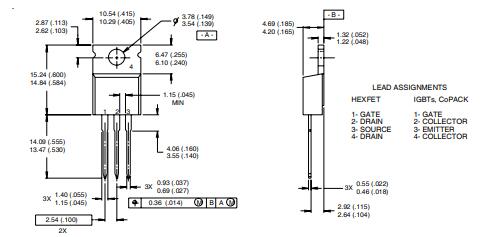

IRLZ14N Package
