3.3V V 4.5 ns ns 5.2 ns ns Gates & Inverters 32mA mA 1.1mm mm 23g mg Surface Mount Surface Mount 1.65V~5.5V V 20μA μA
This post will cover its datasheet, pinout, circuit and more detailed information about NC7SZ08P5X.

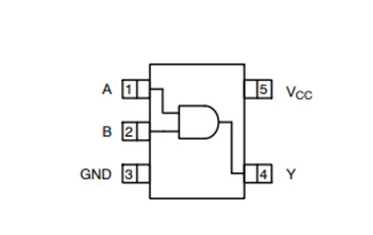

NC7SZ08P5X Pinout
NC7SZ08P5X Pinout
Pin Description
| Pin# | Name | Description |
| 1 | A | Input |
| 2 | B | Input |
| 3 | GND | Ground |
| 4 | Y | Output |
| 6 | Vcc | Supply Voltage |
| 5 | NC | No Connect |
NC7SZ08P5X CAD Model
Symbol
NC7SZ08P5X Symbol
Footprint
NC7SZ08P5X Footprint
3D Model
NC7SZ08P5X 3D Model
NC7SZ08P5X Overview
The NC7SZ08P5X is a single two−input AND gate from ON Semiconductor’s Ultra-High-Speed (UHS) series of TinyLogic. It is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.
NC7SZ08P5X Applications
-
Industrial
-
Motor Drive
-
Automotive
NC7SZ08P5X Alternatives
The alternate parts for NC7SZ08P5X:
-
74LVC1G08GW
-
935268380125
-
935268380118
-
74LVC1G08GW/DG,125
-
TC7SZ08FU(5LTST,JF)
NC7SZ08P5X Circuit
NC7SZ08P5X Logic Symbol
NC7SZ08P5X AC Test Circuit
NC7SZ08P5X AC Waveform
NC7SZ08P5X ICCD Test Circuit
NC7SZ08P5X Package
NC7SZ08P5X Package
NC7SZ08P5X Manufacturer
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.
