FT234XD-R USB: Pinout, Block Diagram, Alternatives

3/2/2023 2:15:30 PM

2.97V~5.5V CMOS USB 2.0 UART Controllers Interface ICs DUAL 12 Pins Bridge, USB to UART 0.45mm 12-VFDFN Exposed Pad

The FT234XD-R is a USB to serial UART interface with optimised packaging (3mm x 3mm 12 pins DFN) for smaller PCB designs.

Catalog

FT234XD-R Overview

The FT234XD-R is a USB to serial UART interface with optimised packaging (3mm x 3mm 12 pins DFN) for smaller PCB designs. It is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID (TID) 40001465 (Rev D).

FT234XD-R Pinout

FT234XD-R Pinout.png

FT234XD-R Pinout

Pin Description

Pin No.	Name	Type	Description
4	VCC	POWER Input	5 V (or 3.3V) supply to IC
9	VCCIO	POWER Input	1.8V – 3.3V supply for the IO cells
3	3.3VOUT	POWER Output	3.3V output at 50mA. May be used to power VCCIO. When VCC is 3.3V; pin 3 is an input pin and should be connected to pin 4.
5, 13	GND	POWER Input	0V Ground input.
1	USBDM	INPUT/OUTPUT	USB Data Signal Minus.
12	USBDP	INPUT/OUTPUT	USB Data Signal Plus
2	RESET#	INPUT	Reset input (active low)
7	TXD	Output	Transmit Asynchronous Data Output
10	RXD	Input	Receiving Asynchronous Data Input.
8	RTS#	Output	t Request to Send Control Output / Handshake Signal
11	CTS#	Input	Clear To Send Control Input / Handshake Signal.
6	CBUSO	I/O	Configurable CBUS I/O Pin. Function of this pin is configured in the device MTP memory.

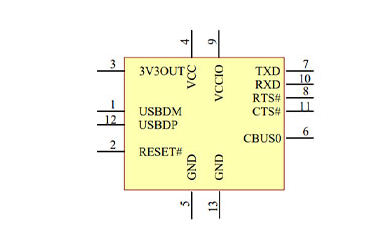

FT234XD-R CAD Model

Symbol

FT234XD-R Symbol.png

FT234XD-R Symbol

Footprint

FT234XD-R Footprint.png

FT234XD-R Footprint

3D Model

FT234XD-R 3D Model.png

FT234XD-R 3D Model

FT234XD-R Alternatives

The alternate parts for FT234XD-R:

FT234XD-T

FT234XD-R Block Diagram

FT234XD-R Block Diagram.png

FT234XD-R Block Diagram

FT234XD-R Typical Applications

USB to RS232/RS422/RS485 Converters
Upgrading Legacy Peripherals to USB
Utilising USB to add system modularity
Incorporate USB interface to enable PC transfers for development system communication
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA-based designs to add USB connectivity
USB Audio and Low Bandwidth Video data transfer
USB Smart Card Readers
USB Instrumentation

FT234XD-R Application Circuit

Application Example showing USB to RS232 Converter.png

Application Example showing USB to RS232 Converter

An example of using the FT234XD as a USB to RS232 converter is illustrated in Figure above. In this application, a 3V3 TTL to RS232 Level Converter IC is used on the serial UART interface of the FT234XD to convert the 3V3 levels of the FT234XD to RS232 levels. This level shift can be done using line drivers from a variety of vendors e.g. Zywyn. A useful feature on some of these devices is the SHDN# pin which can be used to power down the device to a low quiescent current during USB suspend mode. A suitable level-shifting device is the Zywyn ZT3222F which is capable of RS232 communication at up to 1000k baud.

For more detailed application circuits you can refer to the datasheet below.
